This section matches output series from TPP and INDSTAT4 datasets by country.

Merge Basis

  • TPP data is reported in ISIC Rev 2 at the 3-digit level
  • Raw INDSTAT4 data is provided in ISIC Rev 3 or ISIC Rev 4 at the 3- and 4- digit level, with some combined codes.
  • The INDSTAT4 data used for matching have been coerced to 4-digit ISIC values, and then transformed into ISIC Rev 2 at the 3-digit level via 4-digit concordance.
  • After conforming the country codes, TPP output data are joined with corresponding INDSTAT4 data by country.
  • Note that some country series do not have a direct correspondence due to reporting differences (e.g. China/Hong Kong)

Data Preview

TPP as reported in ISIC Rev 2:

head(data_TPP, n = 100)

INDSTAT4 after transformation to ISIC Rev 2:

head(data_INDSTAT$REV3, n = 100)

Data Issue: Mismatching country codes

  • Unfortunately TPP & INDSTAT4 datasets use different country codes.
    • TPP data is reported using 3-letter ISO alpha-3 codes, though likely not the latest ISO standard as it uses “BLX” for Belgium/Luxembourg
    • INDSTAT seems to use UN Statistics Division M49 3-digit numeric codes
  • The World Integrated Trade Solution (WITS, World Bank, 2010) website has an Country Codes annex that seems to cover the alpha-3 codes in TPP & the UNSD numeric codes. However, there is no delimited version for download.
  • Rather than using an external concordance table, we use the country code-name conversion tables provided with each dataset.
  • There are three of these tables in total, one each for INDSTAT4 revisions, and one for the TPP database

Solution: Match INDSTAT4 countries to TPP countries by name

  1. Collapse INDSTAT4 Rev 3 & Rev 4 country tables into single lookup table:
    1. check for conflicts, i.e. same country code but different country names
  2. Merge INDSTAT & TPP tables by country name strings keeping all rows (fulljoin).
    1. Exact matches can be used as is.
  3. Examine and manual correct unmatched TPP country names:
    1. try to find match from INDSTAT countries, including already matched codes as some series may only match over a subset of years (i.e. different handling by TPP/INDSTAT of country splits)
    2. check remaining unmatched INDSTAT series to see if any should be combined with existing matches (e.g BEL/LUX)
  4. Manually input corrections
    1. create concordance table from INDSTAT to TPP (dropping INDSTAT countries without matches)
    2. edit TPP or INDSTAT data to create merged series where necessary
    3. apply concordance to edited INDSTAT

Country Code Fixes

(1) INDSTAT4 Country Inclusion

  • Combine INDSTAT Rev 3 & Rev 4 tables into single lookup
    • Load both tables, group by code, check for conflicting country names under a single code –> merged the two tables into one covering all country codes used in either dataset
    • For Rev 3 & Rev 4, found no name conflicts, though some codes/countries only appear in one revision
## combine indstat tables
rbind_indstat <- load_rbind_INDSTAT_country_tables(here("data/external/country_codes"))
rbind_indstat
## compare across revisions
compare_INDSTAT_country_tables <- function(rbind_df){
  ## compute comparison
  missing_df <- rbind_df %>%
    add_missing_flag()

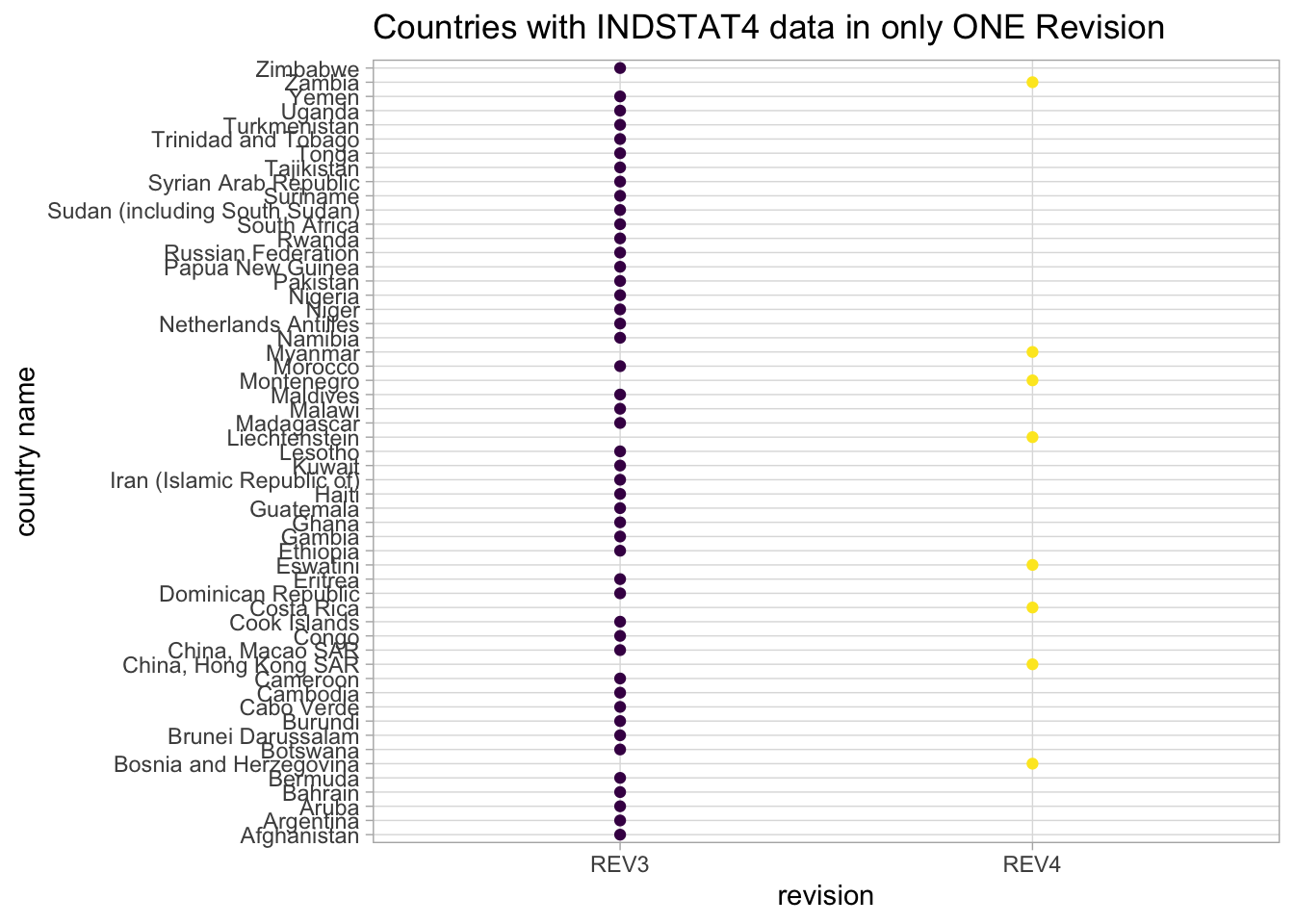

  ## plot countries not in both tables
  plot <- missing_df %>%
    filter(in_all_tables == FALSE) %>%
    ggplot(aes(x = source, y = name)) +
    geom_point(aes(colour = source)) +
    scale_color_viridis_d() +
    labs(x = "revision", y = "country name",
         title = "Countries with INDSTAT4 data in only ONE Revision") +
    guides(colour = "none") +
    theme_light()

  ## pivot table to show missing
  compare_df <- rbind_df %>%
    pivot_wider(names_from = "source", values_from = "code")

  ## list results
  results <- list(compare_df, plot)

  return(results)
}

compare_INDSTAT_country_tables(rbind_indstat)
## Test passed 🥇
## [[1]]
## # A tibble: 148 × 3
##    name        REV3  REV4
##    <chr>       <chr> <chr>
##  1 Afghanistan 004   <NA>
##  2 Albania     008   008
##  3 Algeria     012   012
##  4 Angola      024   024
##  5 Argentina   032   <NA>
##  6 Armenia     051   051
##  7 Aruba       533   <NA>
##  8 Australia   036   036
##  9 Austria     040   040
## 10 Azerbaijan  031   031
## # … with 138 more rows
##
## [[2]]

(2) Merge INDSTAT & TPP country tables

  • combine INDSTAT table with TPP table by country name strings
  • ignore unused country codes (i.e. codes without data)
    • No point to correct country codes that are not used
    • Reduces number of TPP codes without matches from 127 to ~27 (26 after removing ETH duplicate)
lookups <- list()

# combine-INDSTAT-country-lookup
lookups$indstat <-
  make_INDSTAT_country_table(countryCodes_folder) %>%
  conform_indstat("country") %>%
  limit_to_used_codes(bind_rows(data_INDSTAT), ., code.num)
## Test passed 🎊
# import tpp country table
lookups$TPP <- import_TPP_country_table(countryCodes_folder) %>%
      conform_TPP("country")

# make joined lookup
lookups$joined <- merge_country_lookups_by_name(lookups$TPP, lookups$indstat) %>%
  limit_to_used_codes(data_TPP, ., code.alpha)

head(lookups$joined)

(3) Inspect Country Code Matches

name-code duplicates

  • Some country codes might be mapped to multiple other codes or names.
  • Use show_value_conflicts()
  • The only conflict needing correction is code.alpha == "ETH", which lists “Ethiopia” twice.
## check joined table for conflicts & duplicate matches
map(c(expr(code.alpha), expr(code.num), expr(name)), show_value_conflicts, lookup_df = lookups$joined)
## [[1]]
## # A tibble: 2 × 4
##   code.alpha name      code.num     n
##   <chr>      <chr>        <dbl> <int>
## 1 ETH        Ethiopia       231     2
## 2 ETH        *Ethiopia       NA     2
##
## [[2]]
## [1] "`code.num` has no conflicts"
##
## [[3]]
## [1] "`name` has no conflicts"

Country codes without matches

  • draft corrections based on search & manual examination
  • grouped by correction decision
  • 20 TPP alpha codes without matches via name-strings
    • 9 x no matching INDSTAT series; note CRI & MMR have no match in REV3
    • 7 x matching INDSTAT series (string names didn’t match)
    • 4 x probable/combined series matches
  • Flagged series needing additional checks after plotting due to potential series mismatches
    • CZE & SVK – Czech Republic/Czechia & Slovakia – separate matches but adjustments could be different in source data
    • DEU – West Germany only in TPP before 1990
    • BLX – Combined series
    • “china” – CHN, TWN – 156 (China), 158 (China, Taiwan Province), 446 (China, Macao SAR)
# x : No matches (9)
x BEN : No match to "Benin", "Bahomey"
x CIV : No match to "Cote", "D'Ivoire", "Ivory" or "Coast"
x GAB : No match to "Gabon". Independent from France in 1960, no other names searched
x GTM : No match to "Guatemala", "guat"
x HND : No match to "Honduras"
x MOZ : No match to "Mozambique", "moz"
x SLV : No match to "Salvador", "el", "sal"
x VEN : No match to "Venezula", "ven"
x UGA : No match to "Uganda", "ugan"

# < : Mismatch in string only - e.g. name order (7)
< BOL : String mismatch with 68 (Bolivia (Plurinational State of))
< KOR : String mismatch with 410 (Republic of Korea)
< MAC : String mismatch with 446 (China, Macao SAR)
< MDA : String mismatch with 498 (Republic of Moldova)
< TWN : String mismatch with 158 (China, Taiwan Province)
< TZA : String mismatch with 834 (United Republic of Tanzania)
< USA : String mismatch with 840 (United States of America)

# << : Probable matches -- i.e. series inclusions might differ (2)
<< CZE : Probable match with 203 (Czechia)
<< DEU : Imperfect match with 276 (Germany), as DEU series is West Germany only before 1990

# ! : Matches across multiple codes -- i.e. match is across more than one series (2)
! BLX : Combine 56 (Belgium) + 442 (Luxembourg)
! HKG : Potential need to combine with CHN series, already matched to 156 (China). No suitable match from search of "Hong", "Kong", "China"
## print missing indstat match
print_tpp_without_indstat(lookups$joined)
## BEN-Benin
## BLX-Belgium and Luxemburg
## BOL-Bolivia
## CIV-Cote D'Ivoire
## CZE-Czech Republic
## DEU-Germany (West Germany before 1990)
## ETH-*Ethiopia
## GAB-Gabon
## GTM-Guatemala
## HKG-Hong Kong
## HND-Honduras
## KOR-Korea, Republic of
## MAC-Macau
## MDA-Moldova, Republic Of
## MOZ-Mozambique
## SLV-El Salvador
## TWN-Taiwan, Province of China
## TZA-Tanzania, United Republic of
## UGA-Uganda
## USA-United States
## VEN-Venezuela
## search for indstat code
lookups$indstat %>% filter(str_detect(name.indstat, "Bolivia"))

(4) Apply Manual Corrections

Edits to country lookup/concordance table

(
lookups$fixed <- lookups$joined %>%
  fixes$remove_ETH_duplicate() %>%
  fixes$edit_numeric_codes() %>%
  fixes$add_combined_series_codes() %>%
  fixes$remove_no_match()
)
## Test passed 😀

Edits combining separate series data

edited <- list()

## TPP
edited$TPP <-
  data_TPP %>%
  fixes$combine_TPP_CHN_HKG_data()
## Test passed 🌈
## INDSTAT
edited$INDSTAT <- map(data_INDSTAT, fixes$combine_INDSTAT_BLX_data)
## Test passed 😸
## Test passed 😸
## Test passed 😀

Merge TPP and INDSTAT4 using country name

  • keep only data where a country match between TPP & INDSTAT exists
  • match might be from INDSTAT REV3 OR REV4, or both
  • use REV4 – 3-step transformation
  • drop NA values arising from explicit NA rows in TPP data – i.e. country, year, ISIC2.3 without data
  • drop unmatched TPP series (i.e. series without INDSTAT data)
  • add context to matched dataset:
    • data_source id column
    • country.match TPP & INDSTAT alpha & numeric codes concatenated
matching <- list()

# drop unmatched TPP country series & NA rows
matching$TPP <-
  right_join(x = edited$TPP,
           y = lookups$fixed,
           by = "code.alpha") %>%
  drop_na(value.3)


# add alpha codes to INDSTAT data, dropping unmatched series
matching$INDSTAT.REV3 <-
  right_join(x = edited$INDSTAT$REV3,
           y = lookups$fixed,
           by = "code.num") %>%
  drop_na(year)

matching$INDSTAT.REV4 <-
  right_join(x = edited$INDSTAT$REV4_3step,
             y = lookups$fixed,
             by = "code.num") %>%
  drop_na(year)

# bind matching data into single dataset
matched_tpp_indstat <- bind_rows(matching, .id = "data_source") %>%
  mutate(ISIC2.3 = as_factor(ISIC2.3),
         country.match = paste(code.alpha, code.num, sep="-")) %>%
  select(data_source, country.match, year, ISIC2.3, value.3)

# add country.match to lookup
lookups$matched <- lookups$fixed %>%
  mutate(country.match = paste(code.alpha, code.num, sep="-")) %>%
  select(country.match, name, code.alpha, code.num)
# cache matched data
write_rds(matched_tpp_indstat, here::here("data/interim/003-matched_tpp_indstat.Rds"))

# cahce matched country name lookup
write_rds(lookups$matched, here::here("data/interim/003-matched_country_lookup.Rds"))

Reference Code

Collapse TPP & INDSTAT country tables

# import TPP data from csv
read_TPP_csv <- function(TPP_csv){
  read_csv(TPP_csv,
           col_types = cols_only(ccode = col_character(),
                                 year = col_double(),
                                 isic3d_3dig = col_double(),
                                 output = col_double())
  )
}

load_TPP <- function(TPP_paths){
  map(TPP_paths, read_TPP_csv) %>%
    bind_rows()
}

# conform column names & types
conform_TPP <- function(df, table_type = c("data", "country")){
  if (table_type == "data") {
    rename(df, code.alpha = ccode, ISIC2.3 = isic3d_3dig, value.3 = output)
  } else if (table_type == "country") {
    rename(df, code.alpha = ccode, name.TPP = name)
  } else {
    print("Invalid table_type")
  }
}

conform_indstat <- function(df, table_type = c("data", "country")){
  round_thousands <- function(x) {
    round(x/10^3, digits = 2)
  }

  conform_df <- if (table_type == "data") {
    rename(df, code.num = country, ISIC2.3 = ISIC2.3digit) %>%
      mutate(value.3 = round_thousands(value.3)) %>%
      mutate_at(vars(code.num, ISIC2.3), as.numeric)
  } else if (table_type == "country") {
    rename(df, code.num = code, name.indstat = name) %>%
      mutate(code.num = as.numeric(code.num))
  } else {
    print("Invalid table_type")
  }

}

# import & limit lookup tables
import_TPP_country_table <- function(folder){
  path <- list.files(countryCodes_folder, pattern = "TPP", full.names = TRUE)
  raw <- read_tsv(path, col_types = cols())
  return(raw)
}

import_INDSTAT_country_tables <- function(folder){
  # get file names and paths
  paths <- list.files(folder, pattern = "INDSTAT", full.names = TRUE)

  # read tables
  list_df <-
    map(paths, read_csv, col_type = cols())
  names(list_df) <- paths %>% str_extract(., "REV[3-4]")

  return(list_df)
}

check_conflicting_names <- function(rbind_table){
  test_that("no code has conflicting names", {
    by_codes <- rbind_table %>%
      group_by(code) %>%
      summarise(n_names = n_distinct(name))
    nrows_w_multiple_names <- nrow(filter(by_codes, n_names != 1))
    expect_equal(nrows_w_multiple_names, 0)
  })

  return(rbind_table)
}

make_INDSTAT_country_table <- function(folder){
  # import tables
  table_list <- import_INDSTAT_country_tables(countryCodes_folder)

  # check for conflicts
  bind_rows(table_list) %>%
    check_conflicting_names()

  # make single table
  joined_table <- table_list %>%
    reduce(full_join, by = c("code", "name"))

  return(joined_table)
}

limit_to_used_codes <- function(data_df, codes_df, code_col){
  code_col <- enquo(code_col)

  used_codes <- distinct(data_df, !!code_col) %>% pull(!!code_col)

  used_lookup <- codes_df %>%
    filter(!!code_col %in% used_codes)

  return(used_lookup)
}

load_rbind_INDSTAT_country_tables <- function(folder){
  #' @param folder containing indstat country code tables

  # get file names and paths
  paths <- list.files(folder, pattern = "INDSTAT", full.names = TRUE)
  names(paths) <- paths %>% str_extract(., "REV[3-4]")

  # read & combine data
  rbind_table <-
    map_dfr(paths, read_csv, col_type = cols(), .id = "source")


  return(rbind_table)
}

add_missing_flag <- function(rbind_table){

  check_conflicting_names(rbind_table)

  df_missing <- rbind_table %>%
    add_count(code) %>%
    mutate(in_all_tables = case_when(n == max(n) ~ TRUE,
                                     TRUE ~ FALSE)) %>%
    arrange(in_all_tables)

  return(df_missing)
}

merge_country_lookups_by_name <- function(lookup_TPP, lookup_indstat){
  #' merges lookups on name string

  all_countries <- full_join(x = lookup_TPP,
                             y = lookup_indstat,
                             by = c("name.TPP" = "name.indstat")) %>%
    rename(name = name.TPP) %>%
    arrange(code.alpha, code.num)

  return(all_countries)
}

Inspect Country Code Matches

show_value_conflicts <- function(lookup_df, key_col){
  #' shows key with conflicting values
  #' @param key_col code to check for value conflicts
  code_col <- enquo(key_col)

  name_conflicts_df <-
    lookup_df %>%
    drop_na(!!key_col) %>%
    add_count(!!key_col) %>%
    filter(n != 1)

  if (nrow(name_conflicts_df) != 0) {
    return(name_conflicts_df) }
  else {
    return(paste0("`", quo_name(key_col), "` has no conflicts"))
  }
}

print_tpp_without_indstat <- function(lookup_df){
  #' print TPP countries without INDSTAT matching series
  lookup_df %>%
    filter(is.na(code.num)) %>%
    mutate(alpha_w_name = paste(code.alpha, name, sep = "-")) %>%
    pull(alpha_w_name) %>%
    cat(sep="\n")
}

search_name_column <- function(lookup_df, pattern){
  #' shows INDSTAT results in context of partial TPP name matches
  lookup_df %>%
    filter(str_detect(name, regex(pattern, ignore_case = TRUE)))
}
